LIAONING QIUSHI Sets New Standards in Grain Steel Silo Material Selection: Engineering Safety and Longevity

04-08-2025

In the construction of grain steel silos, material selection directly dictates structural safety, storage reliability, and long-term cost efficiency. LIAONING QIUSHI Silo Equipment Engineering Co., Ltd., drawing on decades of industry expertise, has developed a refined material selection framework tailored explicitly for grain storage. This approach harmonizes mechanical performance, corrosion resistance, and environmental adaptability, ensuring every silo meets the stringent demands of preserving grain quality.

1. Steel Plate Substrate: The Backbone of Structural Strength

The performance of a grain silo hinges on its steel substrate, chosen to balance load bearing capacity and operational resilience:

Grade & Strength Optimization: Low alloy high strength steels (e.g., Q355B) are prioritized for their ideal blend of yield strength (≥345MPa) and ductility. This ensures the silo withstands grain static pressure, wind loads, and seismic activity without deformation, while avoiding over-specified high-strength steels that inflate costs unnecessarily.
Strategic Thickness Engineering: Plate thickness is calibrated to silo height, diameter, and grain density. Lower sections, bearing maximum pressure, use 6–8mm plates, while upper sections thin to 4–5mm to reduce weight. Special components cone bottoms, roof reinforcements are sized for their unique roles: insufficient thickness risks bulging or rupture, while excess adds unwarranted expense.
Precision Tolerances: Strict controls on width, length, and thickness (±0.3mm tolerance) ensure seamless rolling and interlocking during installation, critical for maintaining airtightness and structural uniformity.

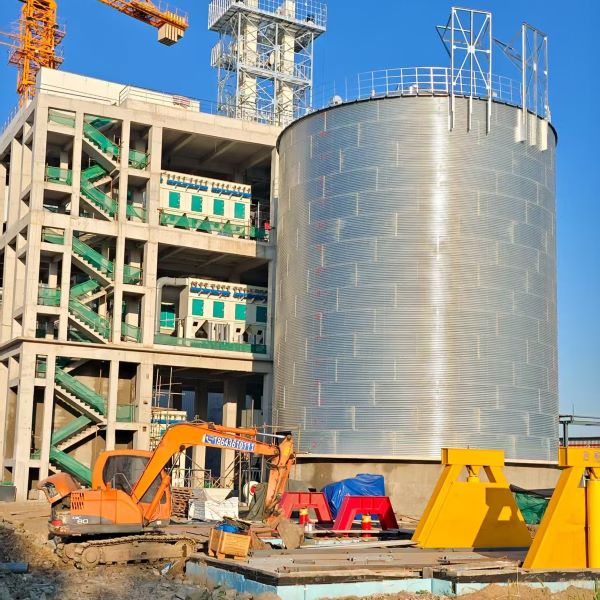

Grain Steel Silo

2. Anti-Corrosion: Galvanized Steel as the Protective Workhorse

For silos exposed to moisture, grain acidity, and outdoor elements, corrosion resistance is non-negotiable. Galvanized steel delivers multi-layered protection:

Dual Shield Mechanism:

Sacrificial Anode Action: Zinc, more electrochemically active than iron, oxidizes first when scratched, shielding the underlying steel from rust.
Physical Barrier: A dense, uniform zinc coating (275g/m²+ for humid zones) blocks oxygen, moisture, and electrolytes, preventing electrochemical decay.

Lifecycle Cost Advantages: While galvanized steel carries a 15% higher upfront cost than plain carbon steel, its 30–40-year lifespan (vs. 10–15 years for uncoated steel) eliminates frequent repainting, cutting long-term maintenance costs by 50%.
Food Safety Compliance: The non-toxic zinc layer meets global food-contact standards (GB 4806.10, EU 10/2011), preventing rust contamination. Its smooth surface minimizes grain buildup, ensuring clean discharge.
Streamlined Construction: Factory-applied galvanization guarantees quality consistency. On-site processing—rolling, bending, bolting—avoids on-site painting/sandblasting, trimming construction timelines by 30%.

3. Enhanced Protection for Extreme Conditions

Harsh environments or specialized storage demands require targeted upgrades:

High-Corrosion Zones: Coastal/industrial areas with salt spray use 450g/m² zinc layers or aluminum-zinc alloys (Galvalume), which outperform pure zinc in resisting cut-edge corrosion.
High-Temperature Storage: Silos handling warm grains or in hot climates adopt heat-resistant coatings or Galvalume, as excessive heat accelerates zinc degradation.
Food-Grade Applications: Sensitive grain zones use stainless steel liners or food-safe epoxy coatings, ensuring compliance with strict purity protocols.

4. Fasteners & Accessories: Securing the Details

Small components are critical to durability, with corrosion resistance matching the main structure:

Hardware: Hot-dip galvanized bolts (8.8-grade) and stainless steel nuts prevent galvanic corrosion at joints. Ordinary carbon steel fasteners are banned to avoid corrosion hotspots.
Sealants: Silicone-based sealants, compatible with galvanized surfaces, ensure watertightness at bolt holes and seams—vital for fumigation and moisture control.
Structural Add-Ons: Reinforcement ribs, flanges, and ladders undergo identical galvanization as main plates, ensuring uniform corrosion resistance across all parts.

5. Welding Zones: Mitigating Vulnerabilities

Welding damages zinc coatings, creating corrosion risks—rigorous post-weld treatments address this:

Zinc-rich primers or specialized repair pastes restore protection to heat-affected areas, matching the original galvanized layer’s thickness and adhesion.
Strict inspections verify no bare steel is exposed, as even tiny gaps can trigger rust spread.

6. Lifecycle Economics & Quality Assurance

Material choices prioritize long-term value over initial savings:

Total Cost Analysis: A 5,000-ton silo using 275g/m² galvanized steel, for example, incurs 15% higher upfront costs but saves 70% in maintenance over 20 years.
Supplier Vetting: Only certified suppliers (meeting GB/T 2518, ASTM A653) are approved. Incoming materials undergo testing for zinc thickness, adhesion, and surface quality.

Commitment to Excellence

“Grain silos are more than storage—they’re guardians of food security,” notes LIAONING QIUSHI’s Technical Director. “Every material decision, from steel grade to sealant type, is engineered to protect grain quality and extend silo life.” By merging scientific rigor with field experience, the company ensures its grain steel silos stand resilient against time, climate, and heavy use—safe, reliable, and cost-effective.

For tailored material solutions or project inquiries, contact LIAONING QIUSHI at sales@qssilo.com.
